Crawler Scissor Lift, XE-CT Series

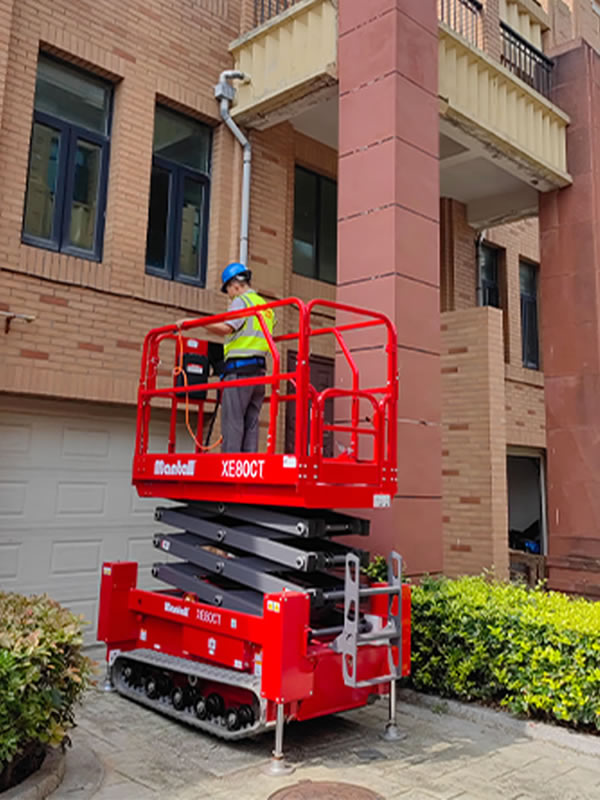

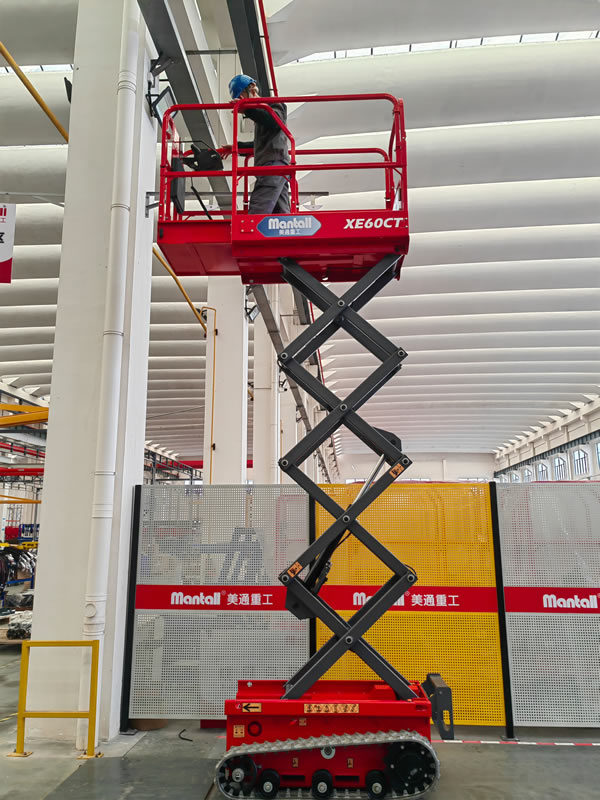

Mantall XE-CT series crawler scissor lift features a rubber-track undercarriage with a tank-like structure, which allows it to work on soft terrain without sinking, thus overcoming the restriction that aerial work platforms only can operate on the hard ground. This crawler scissor lift will not damage the floor or leave a trace when turning at zero degree thanks to its non-marking rubber tracks, making it suited to indoor jobsites. The crawler track system is characterized by low noise level and less vibrations, and ideal for quick transportation from one job site to another.
- 0.9X1.84m platform
- Tilt alarm system
- Fault diagnosis system
- Explosion-proof of the oil tube
- Automatic brake system
- Safety maintenance support bar
- 200X72 hard rubber crawler
- Hour meter
- External charging indicator
- AC socket in the platform
- All motion alarm
- Fault code display
- Flash light
- Buzzer
- Proportional control
- Emergency lower down
- Manual brake release
- Maintenance free battery
- Handheld fault diagnostic device
- Overload sensor

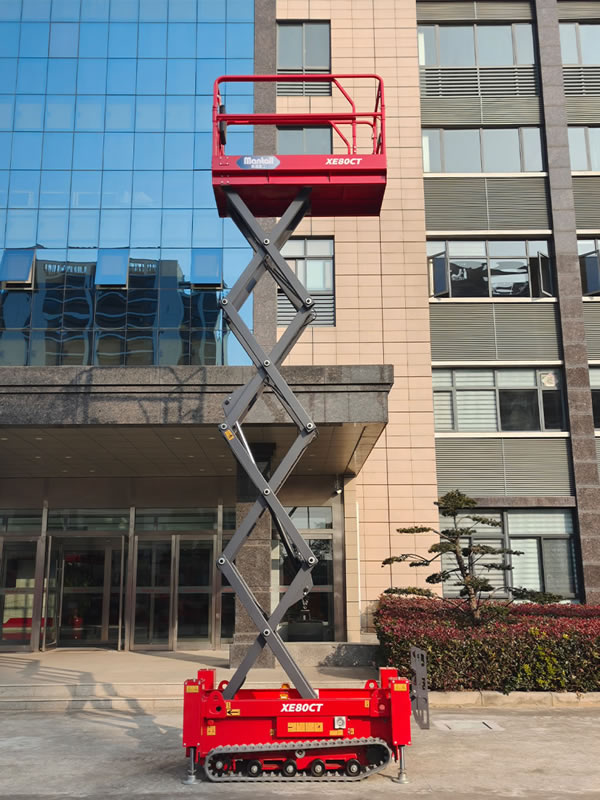

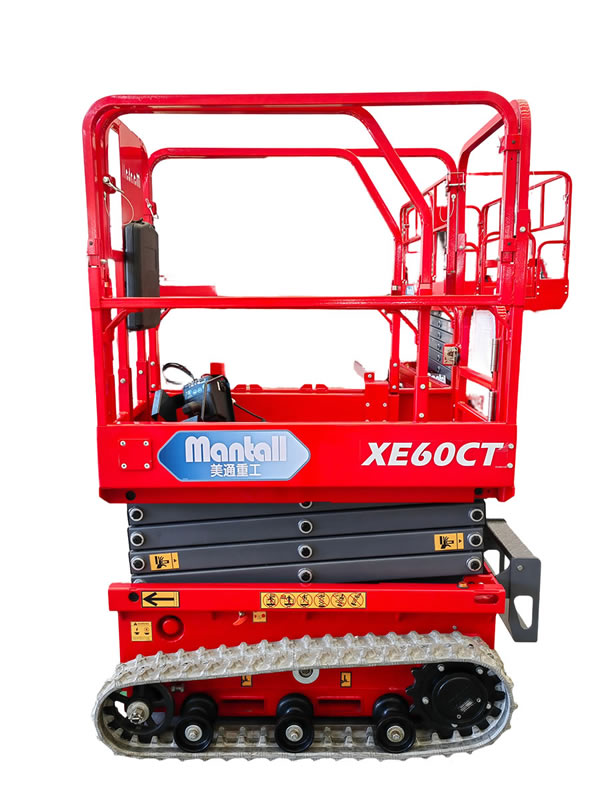

| Models | XE60CT |
XE80CT |

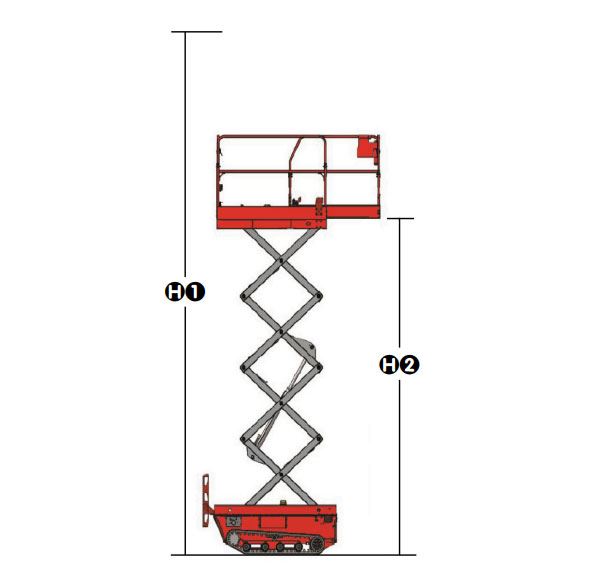

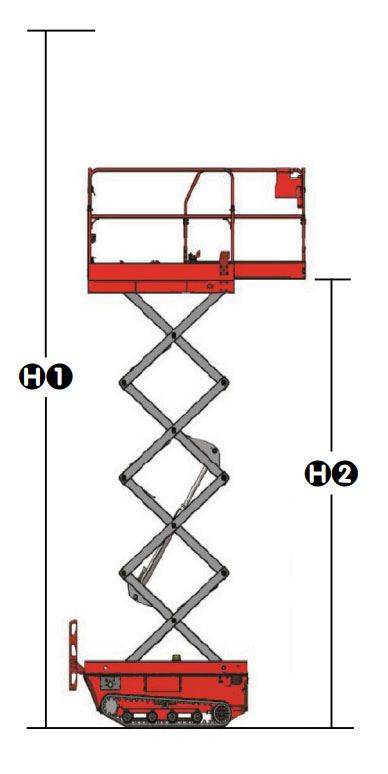

| Max. working height H1 | 6.8 m | 8 m |
| Max. platform height H2 | 4.8 m | 6 m |
| Max. outreach | 0.9 m | |
| Lifting capacity | 230 kg | |
| Lifting capacity on the extension | 115 kg | |

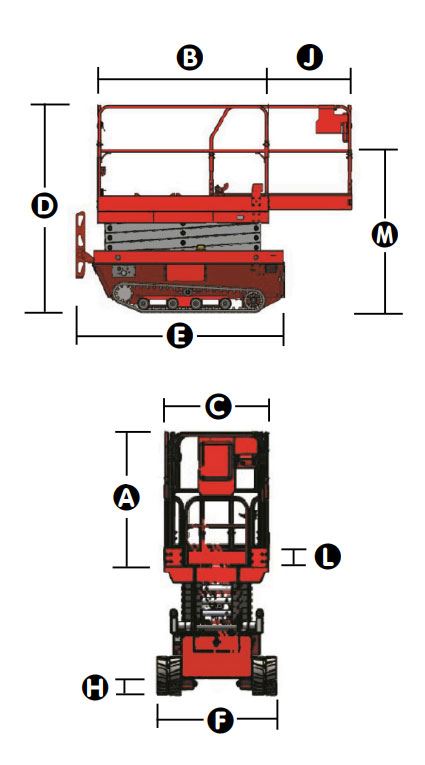

| Platform size B*C*A | 1.84×0.9×1.1 m | |
| Overall length and width E*F | 2.26×1.01 m | |
| Height stowed D | 2.12 m | 2.22 m |
| Height-guardrails folded | 1.75 m | 1.85 m |
| Ground clearance(m) | 0.13 m | |
| Raising time/Lowering time(s) | 24/22 s | 32/30 s |
| Drive speed, stowed | 1.7 Km/h | |
| Drive speed, raised | 0.7 Km/h | |
| Gradeability | 40% | |
| Tilt sensor- front to back | 3° | |
| Tilt sensor- side to side | 2° | |
| Drive Model | Electric Drive | |
| Hydraulic tank capacity | 7 L | |
| Crawler size | Y200*72 -49 Section | Y200*72 -49 Section |
| Max. platform occupancy | 2 pers | |
| Power source | 24V/225Ah | |
| Weight | 1140 kg | 1235 kg |
Mantall XE-CT/OR series is designed for working on uneven ground because it has hydraulic self-levelling legs, which allow user to automatically level the scissor lift on slopes up to 4.5 degrees by front to back direction and up to 10 degrees by side to side direction.
- 0.9X1.84Mplatform
- Tilt alarm system
- Fault diagnosis system
- Explosion-proof of the oil tube
- Automatic brake system
- Safety maintenance support bar
- 200*72 hard rubber crawler
- Hour meter
- External charging indicator
- AC socket in the platform
- All motion alarm
- Fault code display
- Flash light
- Buzzer
- Proportional control
- Emergency lower down
- Manual brake release
- Maintenance free battery
- Handheld fault diagnostic device
- Overload sensor
| Models | XE60CT OR |
XE80CT OR |
|

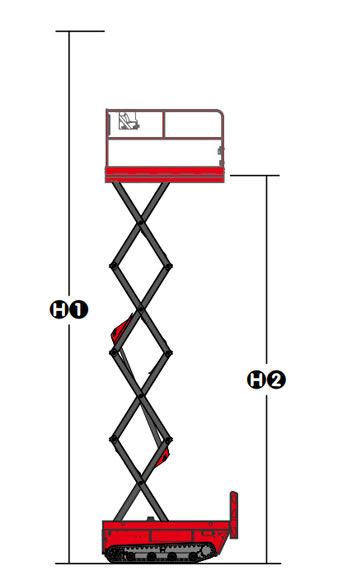

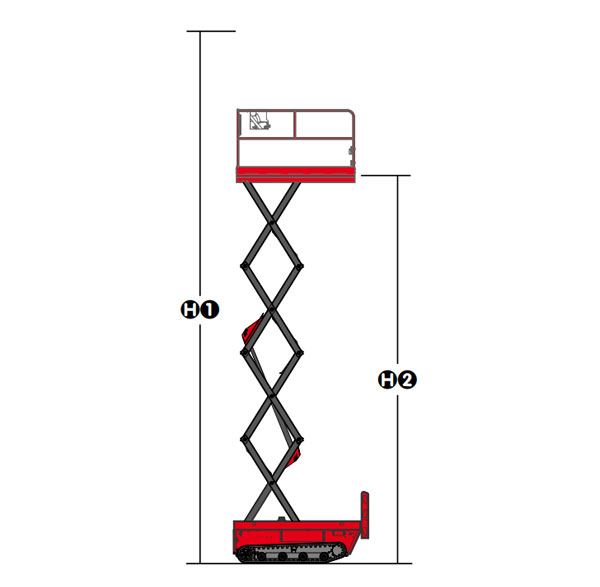

| Max. Working height H1 | 6.8 m | 8 m | |
| Max. Platform height H2 | 4.8 m | 6 m | |
| Max. Outreach | 0.9 m | ||
| Lifting capacity | 230 kg | ||
| Lifting capacity on the extension | 115 kg | ||

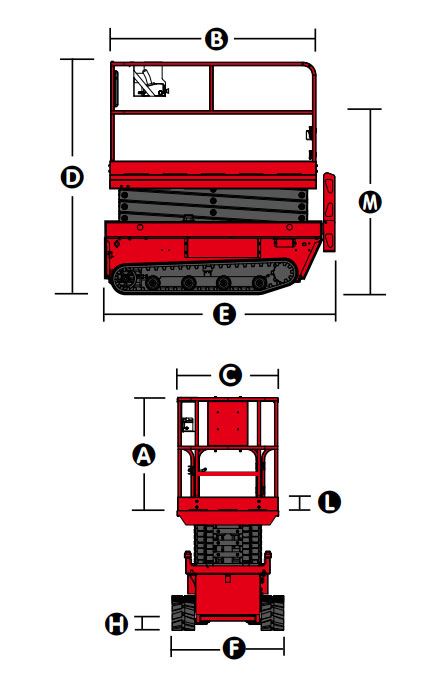

| Platform size B*C*A | 1.84×0.9×1.1 m | ||
| Overall length and width E*F | 2.26×1.12 m | 2.26×1.12 m | |
| Height stowed D | 2.12 m | 2.22 m | |
| Height-guardrails folded | 1.75 m | 1.85 m | |
| Ground clearance(m) | 0.13 m | ||
| Raising time/Lowering time(s) | 24/22 s | 32/30 s | |
| Drive Speed, stowed | 1.7 Km/h | ||
| Drive Speed, raised | 0.7 Km/h | ||
| Gradeability | 40% | ||
| Tilt sensor- front to back | 3° | ||
| Tilt sensor- side to side | 2° | ||
| Outrigger Level ability-front to back | 4.5° | ||
| Outrigger Level ability-side to side | 10° | ||
| Drive Model | Electric Drive | ||
| Hydraulic tank capacity | 10 L | ||
| Crawler size | Y200*72 -49 Section | Y200*72 -49 Section | |
| Max. platform occupancy | 2 pers | ||
| Power source | 24V/225Ah | ||
| Weight(kg) | 1445 kg | 1525 kg | |
- This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
- Load capacity up to 230Kg, the lifting is stable, safe and reliable.
- Strong driving power and fast traction speed
- With on board diagnostic system, intelligent fault alarm system and other functions.
