Mobile Single Mast Aerial Work Platform, AMP Series
Mobile Single Mast Aerial Work Platform AMP Series
Video
Mantall AMP series single mast aerial work platform is intended to lift worker with necessary tools to working heights of up to 14 meters. The unique design of lifting mast provides excellent stability, enabling operations more safe and easier. The single mast aerial work platform is built to be as compact as possible, so that the operator can move it through standard doorways or very narrow passages even when the working height is up to 12 meters, without the need for tilting the platform. The single mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.
Standard Features
- Aluminum platform basket
- Polyurethane non-mark tires
- Leverage Ro-Ro device
- Lifting ears
- Two controls: platform control and ground control
- Lower beeper warning
- Tilt Device (only for AMP40)
- Emergency lower down
- Outrigger storage frame
- Maintenance-free battery
Optional
- Door type standard/narrow/wide platform
- Fiber glass platform
- Goods collection platform
- Narrow/rough ground chassis
- DC power
- Tool box
- Platform positioning laser light
- Fluorescent tubes box
- Working flashing beacon
- Top limit protection auto-stop device
- Equipment protection cover
Specifications
| Model | AMP20 |
AMP26 |
AMP32 |
AMP40 |
| Working height Max. H1 | 8.0m | 10.0m | 12.0m | 14.0m |
| Platform height Max. H2 | 6.0m | 8.0m | 10.0m | 12.0m |
| Lift capacity | 159kg | 120kg | ||
| Basket size B*C | 0.69m*0.68m | |||
| Stowed size E*F*D | 1.27*0.74*1.97m | 1.36*0.78*1.97m | 1.42*0.78*1.97m | 1.46*0.78*2.76m |
| Height, tilted back M | -- | -- | -- | 1.98m |
| Length, tilted back J | -- | -- | -- | 2.87m |
| Outrigger footprint I*K | 1.77*1.49m | 1.99*1.72m | 2.27*1.98m | |
| Wall access front/side H/G | 0.18/0.45m | 0.18/0.45m | 0.23/0.55m | 0.42/0.65m |
| Power source AC/DC | 220V/110V/12V | 220V/110V/12V | 220V/110V/12V | 220V/110V/12V |
| Weights AC/DC | 355kg/405kg | 400kg/440kg | 427kg/477kg | 548kg/595kg |

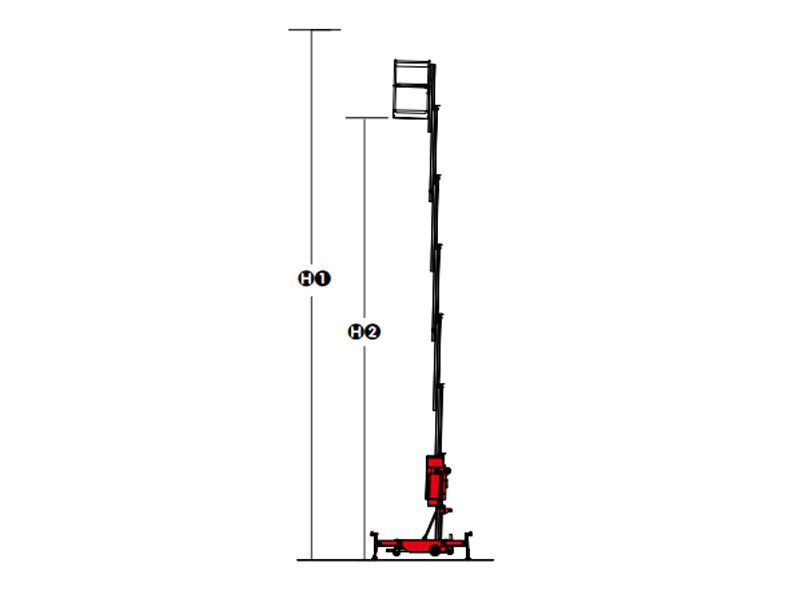

Working Heights

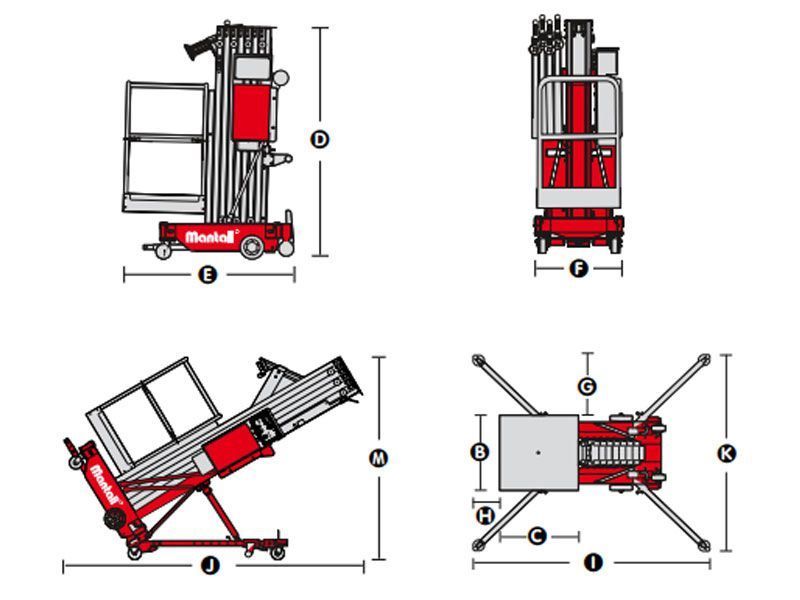

Stowed Dimensions
Function Description
- The metric system height is 2 meters higher than platform height, the imperial height is 6 feet than platform height
- In rising mode, the boom lift is designed to operate only on a solid flat surface
- Climbing capability is suitable for driving on the slopes, refer to the operator’s manual for details on slope class level
- Weight according to the opitions and standards vary from country to country.
