Electric Self-Propelled Scissor Lift XE-C Series
Video
Mantall XE-C series electric self-propelled scissor lifts are an aerial work platform with the maximum working height of 10m, which is ideal for maneuvering in tight spaces. This electric self-propelled scissor lift is provided with two options of travel speed, the fast speed mode enables quick moving from one jobsite to another while the slow speed mode makes the movement more safe when working at heights. The travelling and lifting can be controlled by simply using the fully proportional joystick, providing easy operation.
Standard Features
- Manual emergency lower system
- Multi-disc wet brakes
- Manual brake release
- Pothole protection
- Non-marking tires
- AC wiring to platform
- Tilt alarm
- Buzzer
- Hour meter
- Safety brackets
- Charger indicator
- Forklift pockets
- Diagnostic system
- Extended platform
- Maintenance-free battery
- Platform swing gate
- Dual flashing beacon
- Foldable platform
Optional
- Motion alarm
- Airline to platform
- Power socket to platform
- Overload sensor
- Horn
- Platform work light
- Anti-collision system
- Top limit protection auto-stop device
Specifications
| Models | XE80C |
XE100C |
| Working height max H1 | 8 m | 10 m |
| Platform height max H2 | 6 m | 8 m |
| Platform extension size | 1 m | 1 m |
| Lifting capacity | 350 kg | 230 kg |
| Lifting capacity on the extension | 120 kg | 120 kg |
| Dimension of the platform B*C*A | 2.25×0.8×1.1 m | |
| Platform length-extended K | 3.2 m | |
| Platform Skirting board height L | 0.15 m | |
| Overall length and width E*F | 2.5*0.8 m | |
| Height stowed D | 2.17 m | 2.3 m |
| Height-guardrails folded M | 1.72 m | 1.86 m |
| Wheelbase G | 1.85 m | |
| Ground clearance H | 0.1 m | |
| Ground clearance-deployed potholes | 0.019 m | |
| Turning radius-inside | 0 | |
| Turning radius-outside | 2.12 m | |
| Raising time/Lowering time | 27/29 s | 35/17 s |
| Drive speed-stowed | 3.4 km/h | |
| Drive speed-raised | 0.7 km/h | |
| Gradeability | 30% | 25% |
| Tilt (front to back/side to side) | 3° / 2° | |
| Drive model | Hydraulic drive /Electric drive | |
| Hydraulic tank capacity | 15 L | |
| Tire size | 356*114*254 mm | |
| Max. platform occupancy | 2 pers | |
| Power source | 4×6V/225Ah | |
| Weight ANSI/CSA Standard | 1690 kg | 1855 kg |
| CE/AUS Standard | 1910 kg | 2000 kg |

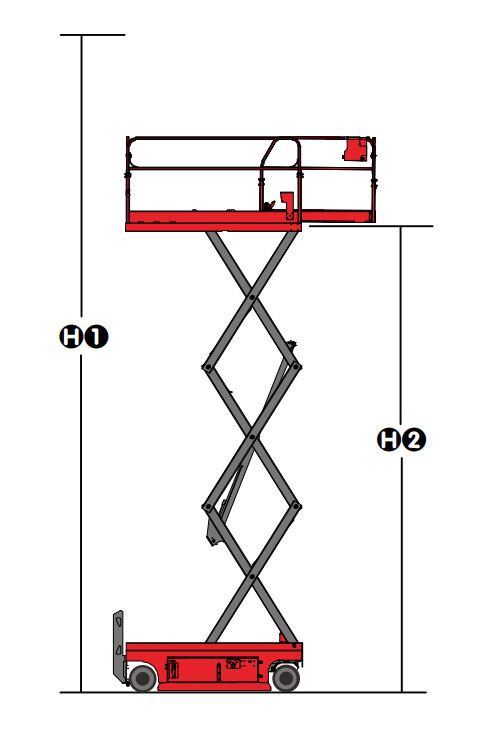

Working Heights

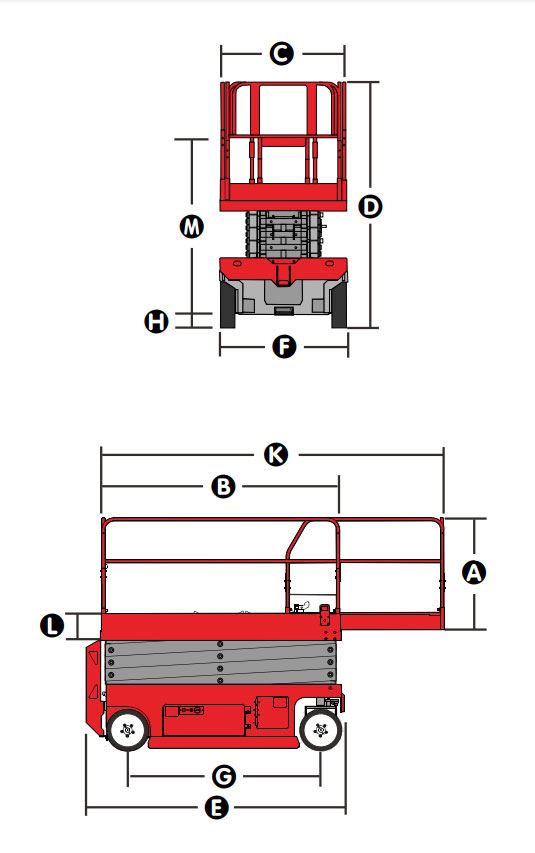

Stowed Dimensions
