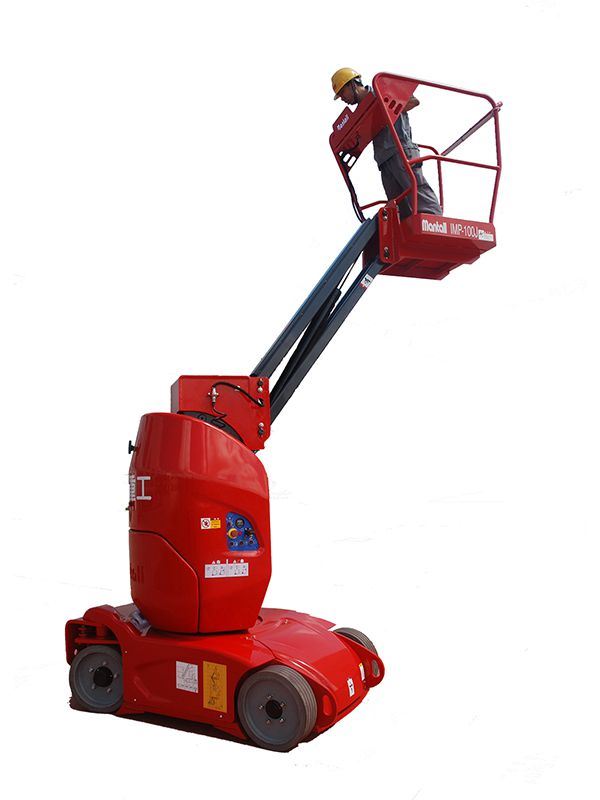

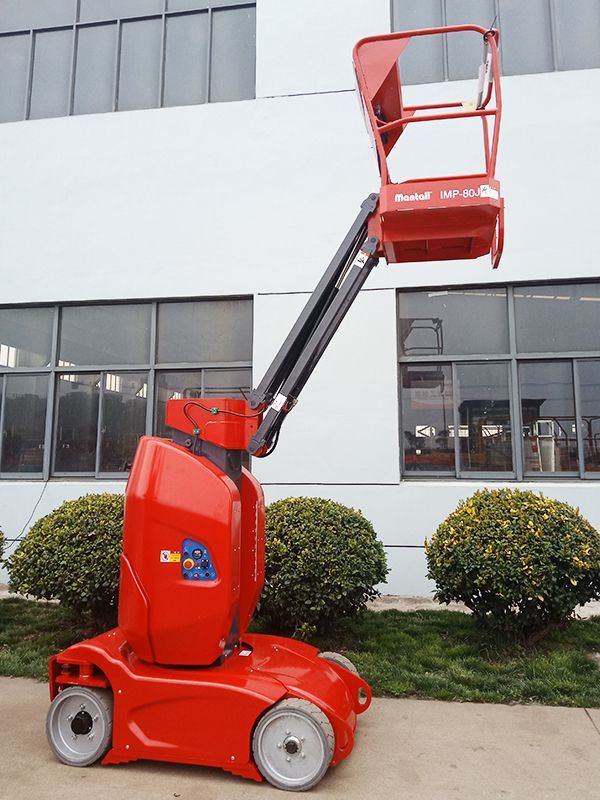

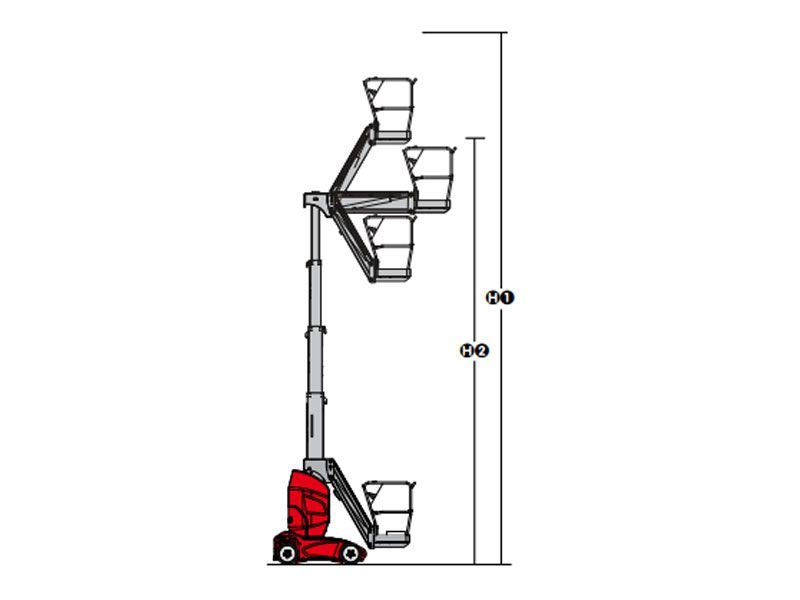

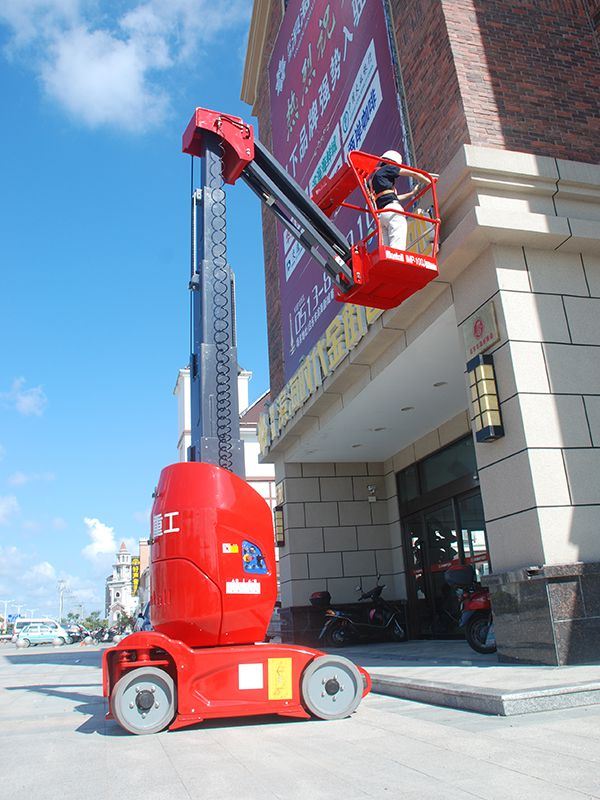

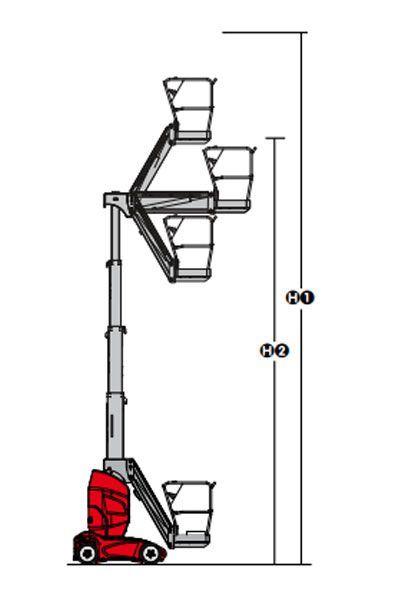

IMP-J series vertical mast lifts are an aerial work platform intended to provide access to high reaching tasks in narrow aisles and confined spaces. Built with compact and lightweight structure, these vertical mast lifts deliver an exclusive maneuverability and portability for vertical aerial operations. They also offer exceptional operational capability with a robust welded mast that is made of high strength alloy steel, providing maximum working height up to 10 meters and an outreach of 3.2 meters. Our IMP-J series vertical mast lifts are equipped with newly developed dual DC motor coupled with high torque reducer, ensuring less power consumption and greater torque for stable lifting and fast traveling. The streamlined design gives the vertical mast lift a superior look, distinguishing it from other similar aerial work platforms.

Lifting capacity 200kg
Standard platform with median sliding rod
Auxiliary platform lowering System
Ground emergency lowering valve

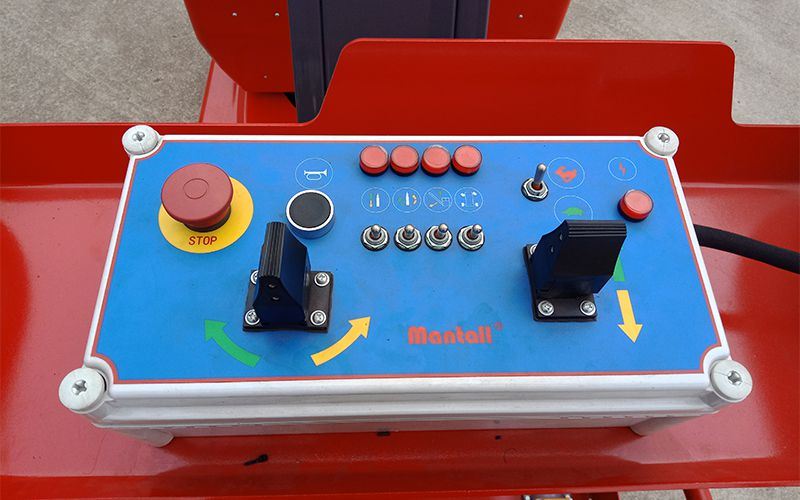

Proportional raising and driving control

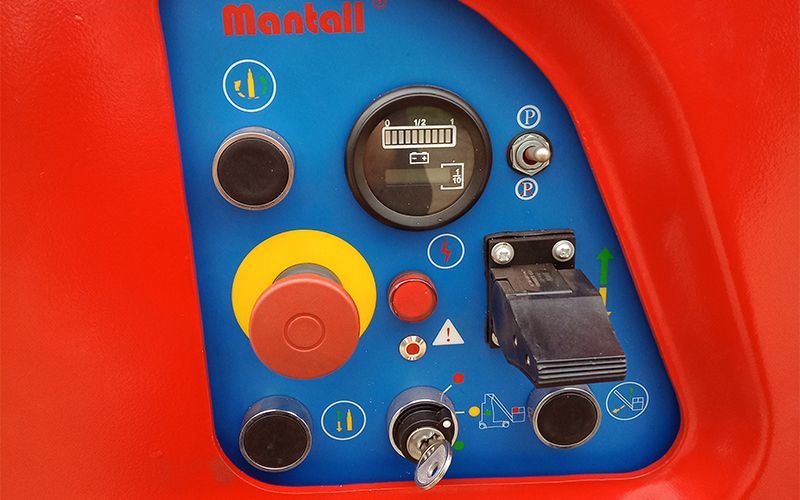

Diagnosis system
AC wiring to platform
Lowering and tilt alarm
Turn inter-radius is 0
Double wheel brake
Hydraulic brake release
Fixed pothole guards
The rear shield mounted with hinge, conveniently to close to all major electric and hydraulic components.
Transportation fixed hole
Wide forklift hole

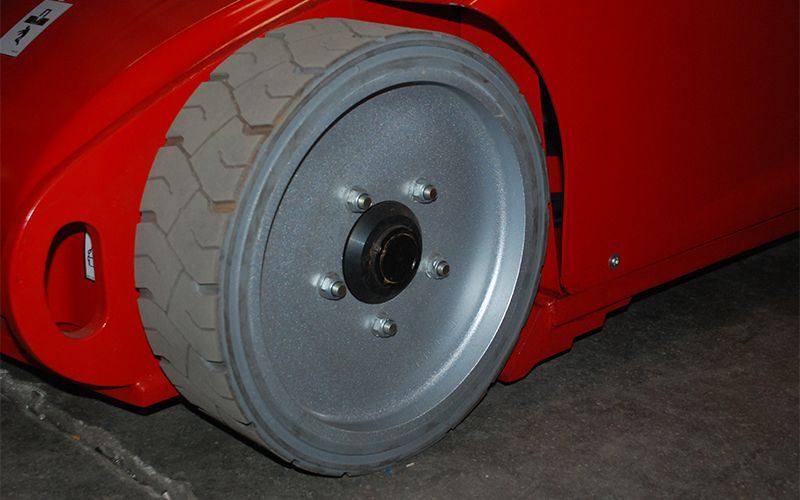

Solid Non-marking tires

Fiber glass platform
Goods collection platform
Motion alarm
Tool box
Platform positioning laser light
Fluorescent tubes box
Working flashing beacon
Top limit protection auto-stop device
Maintenance-free battery
Equipment protection cover
Can not be drive when charging
