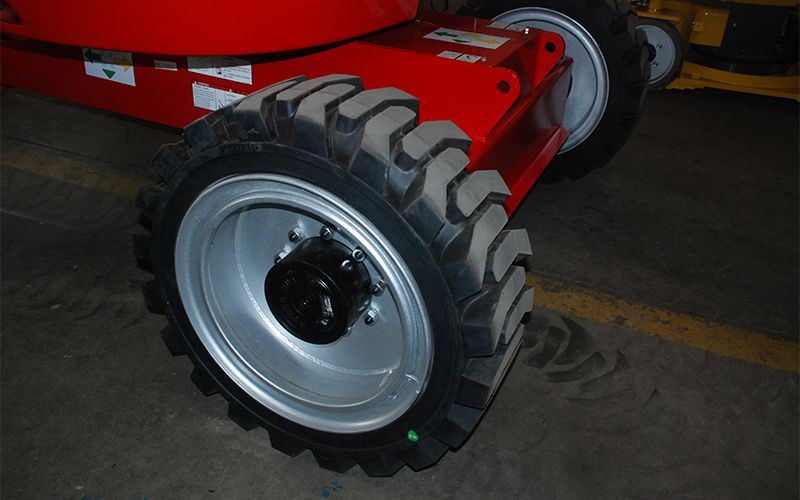

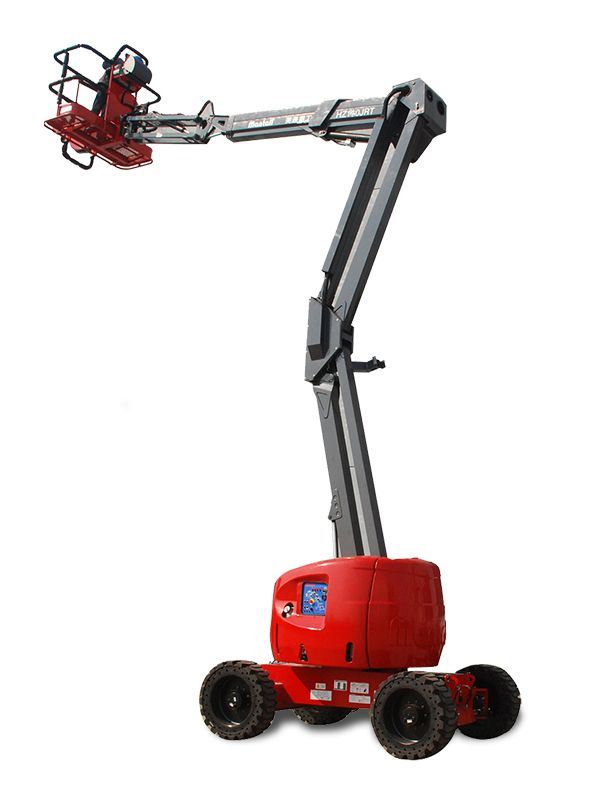

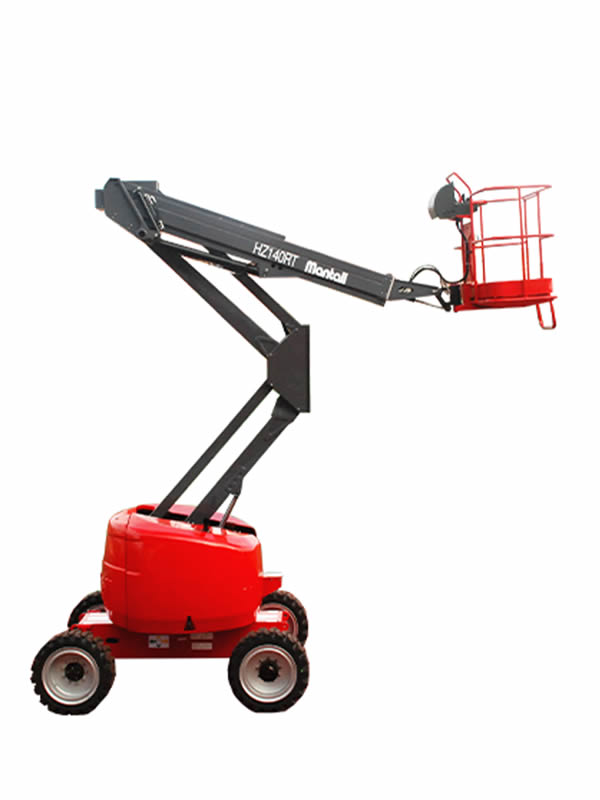

Built to accommodate working heights up to 14 meters, our HZ140RT/HZ140JRT self-propelled articulated boom lifts are suitable for multi-directional precise positioning and lifting operations and allow worker to reach work areas that are difficult to access and avoid obstructions. Due to its 360-degree rotating turntable and working platform that can move up, down, left and right, the self-propelled articulated boom lift facilitates workers' performance of their jobs. By employing ultra-quiet non-marking tires, these articulated boom lifts are ideal for indoor applications and can protect floors. A fully proportional Hall effect joystick and CAN intelligent control system are also included in our HZ140RT/HZ140JRT self-propelled articulated boom lifts, which make maintenance and upgrading easier while carrying out a variety of actions simultaneously.
Standard Features
Self-leveling platform
Hydraulic rotation platform
Hall effect fully proportional controls
Driving confirm

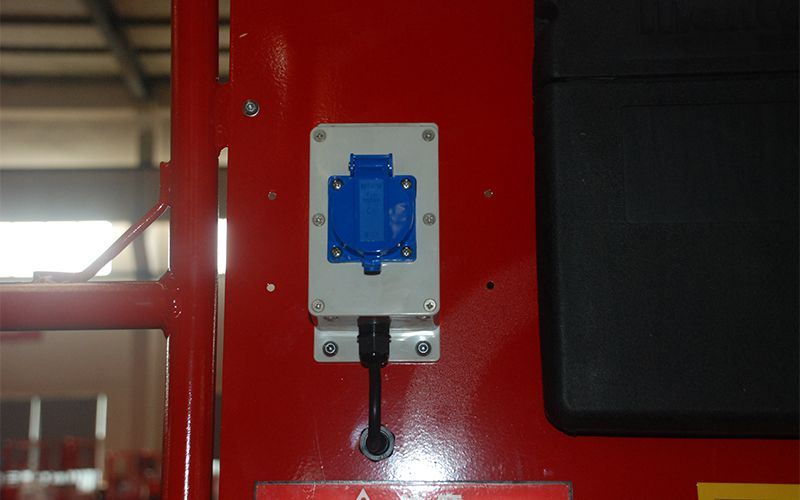

AC wiring to platform
Horn
Hour meter
Tilt alarm
Positive traction drive
Dual Speed motor
Emergency pump
CAN intelligent control
Overload sensor
Optional
2.4m platform
Platform swing gate
Platform alternate leverage
Airline to platform
Hydraulic oil cooler
Hostile environment packages
Anti-crash air packages
Tool tray
Alarm packages
Platform work lights
Specifications
Models
HZ140RT/HZ140JRT
HZ160RT/HZ160JRT
HZ180JRT
HZ200JRT
HZ260JRT
Max. working height
14m
16m
18m
20m
26m
Max. platform height
12m
14m
16m
18m
24m
Max. outreach
7.01m/7.08m
8.19m/8.4m
9.5m
11.1m
15.1m
Max. up and over height m
6.27m/6.5m
7.09m/7.71m
7.6m
8.9m
10.3m
Max. lift capacity
230kg
230kg
230kg
230kg
230kg
Platform size B*C*A
1.8m×0.76m×1.17m
1.8×0.76×1.17m
1.83m×0.76m×1.1m
2.4m×0.9m×1.1m
2.4m×0.9m×1.1m
Height-stowed D
2.30m
2.30m
2.50m
2.50m
2.70m
Length-stowed E
5.63m/6.58m
6.14m/6.87m
8m
8.60m
9m
Width F
2.00m
2.00m
2.30m
2.50m
2.50m
Wheelbase G
2.00m
2.00m
2.10m
2.50m
2.8m
Ground clearance H
0.36m
0.36m
0.36m
0.35m
0.33m
Turntable rotation
360° discontinuously
360° discontinuously
360° continuously
360° continuously
360° continuously
Turntable tailswing
0
0
0
0
0
Platform rotation
0/180°
Jib Swing
0/140°(HZ140JRT only)
0/140°(HZ160JRT only)
0/135°
0/137°
0/135°
Platform level
Hydraulic level
Hydraulic level
Hydraulic level
Hydraulic level
Hydraulic level
Drive speed, stowed
3.0km/h (7.0km/h 4wd）
4.9km/h (7.0km/h 4wd）
4.8km/h
4.8km/h
4.8km/h
Drive speed, extended
1.0km/h
Gradeability
30%（45%4WD）
30%（45%4WD）
30%(45%4WD)
30%（45%4WD）
30%
Drive wheels number
2/4WD
2/4WD
4WD
2/4WD
2WD
Steering wheel number
2
2
2
2
2
System voltage
DC12V
DC 12V
DC12V
DC12V
DC12V
Controls
Electrical proportional control
Electrical proportional control
Electrical proportional control
Electrical proportional control
Electrical proportional control
Min. turning radius-(outside)
4.0m
4.0m
4.5m
5.4m
4.5m
Min. turning radius-(inside)
2.30m
1.7m
1.7m
2.2m
2.1m
Max. lateral force
400N
400N
400N
400N
400N
Max. tilt angle
3°
3°
3°
3°
3°
Max. wind speed allowed
12.5m/s
12.5m/s
12.5m/s
12.5m/s
12.5m/s
Hydraulic tank capacity
70L
70L
170L
170L
170L
Fuel tank capacity
65L
65L
140L
85L
140L
Tire size
33*12-20
33*12-20
355/55D-625
355/55D-625
385/55D-24 Solid tire
Power
Perkins 404D Diesel Engine
Perkins 404D Diesel Engine
Yanmar 4TNV88
Yanmar 4TNV88
CumminsQSFT2.8-C
Total weight
5.6T/6.3T
6.35T/6.8T
8.42T
11.985T
13T

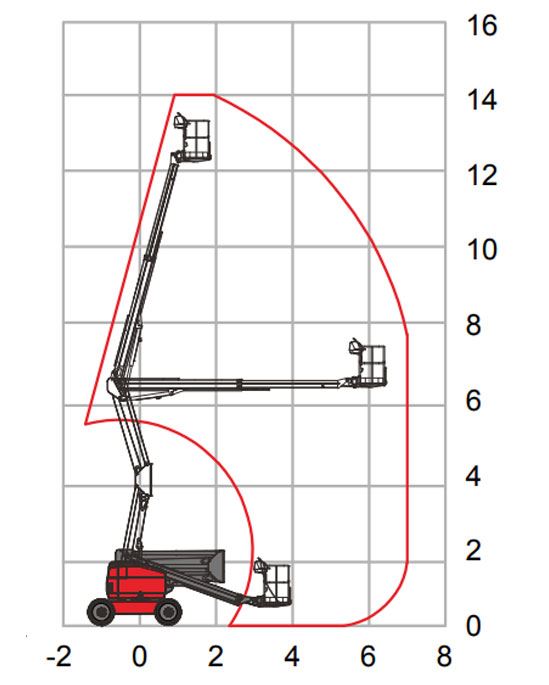

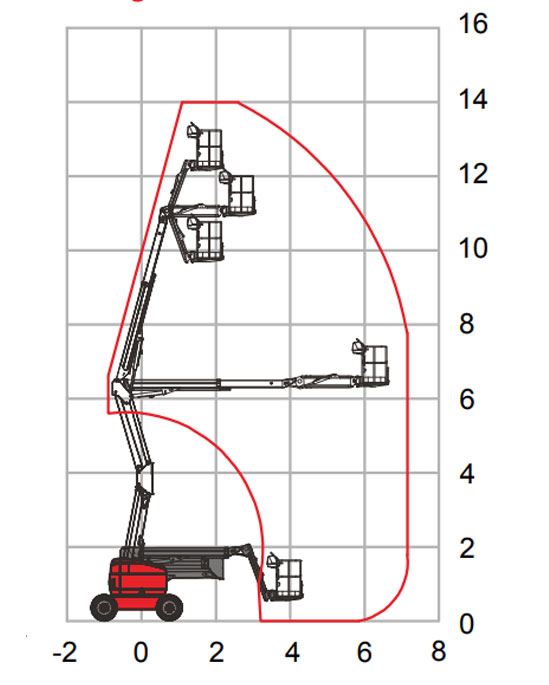

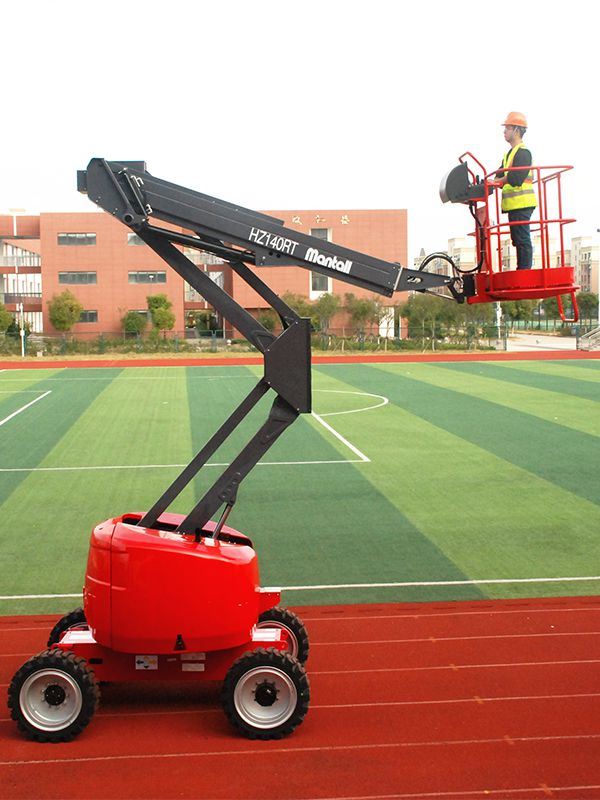

Working Heights
HZ140RT
HZ140JRT

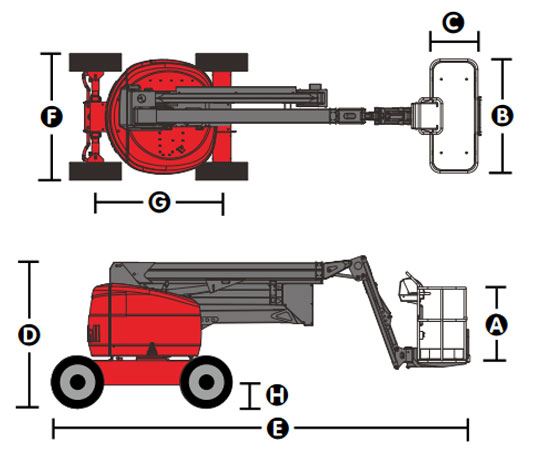

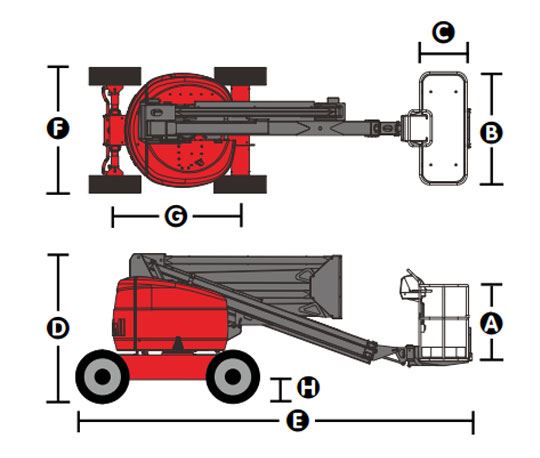

Stowed Dimensions
HZ140RT
HZ140JRT
Details

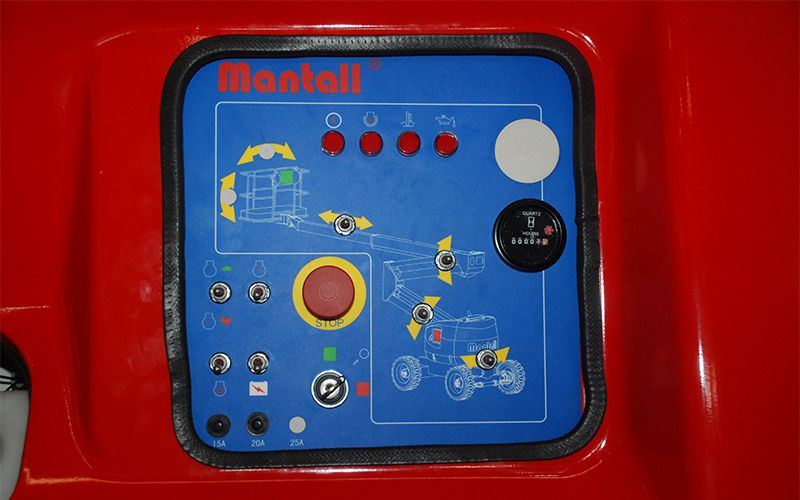

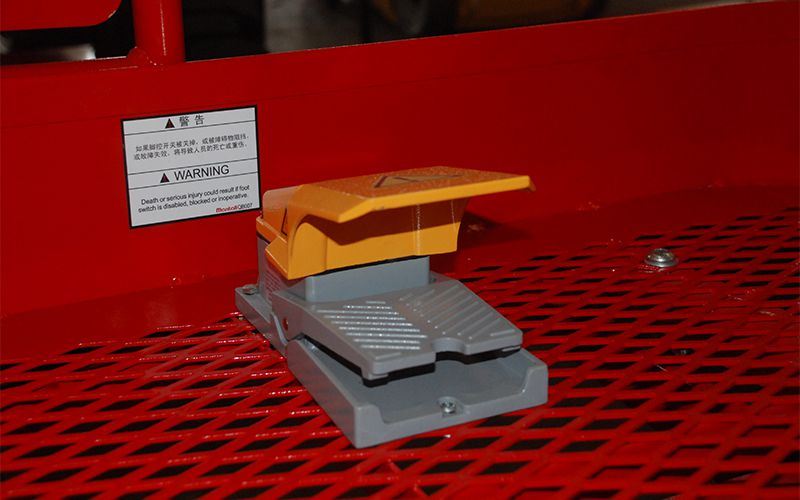

Function Description
The metric system height is 2 meters higher than platform height, the imperial height is 6 feet than platform height
In rising mode, the boom lift is designed to operate only on a solid flat surface
Climbing capability is suitable for driving on the slopes, refer to the operator’s manual for details on slope class level
Weight according to the opitions and standards vary from country to country.
Mantall specializes in developing, manufacturing and servicing aerial lift equipment and elevating work platforms, with exceptional maneuverability for loading and unloading of operators and their equipment to a desired working height. Whether you work in construction, equipment installation and maintenance, or any other applications requiring lift equipment for raising and lowering personnel and loads, we have the expertise to create an aerial lift solution for safe aerial work operations. Regardless of the chosen aerial devices such as personnel lifts, boom lifts and scissor lifts, we never compromise on our quality control standard.
