Vertical Mast Lift, IMP120J

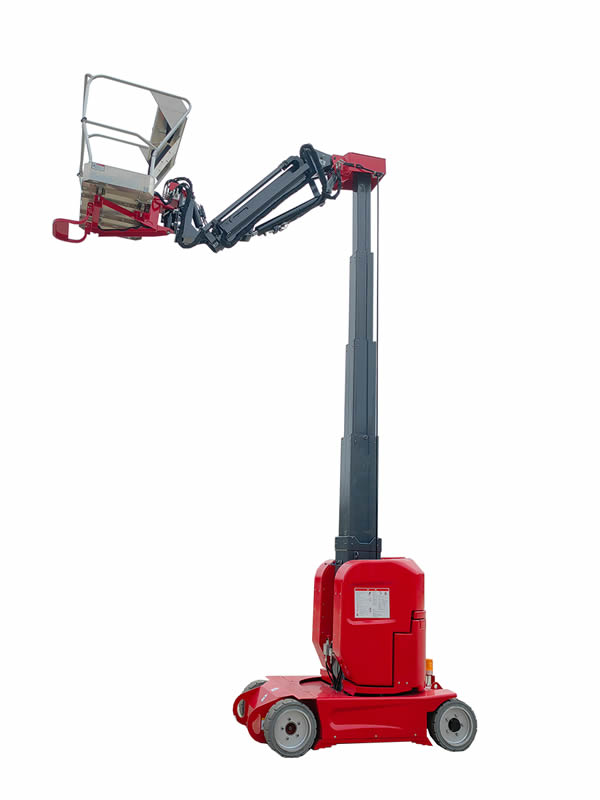

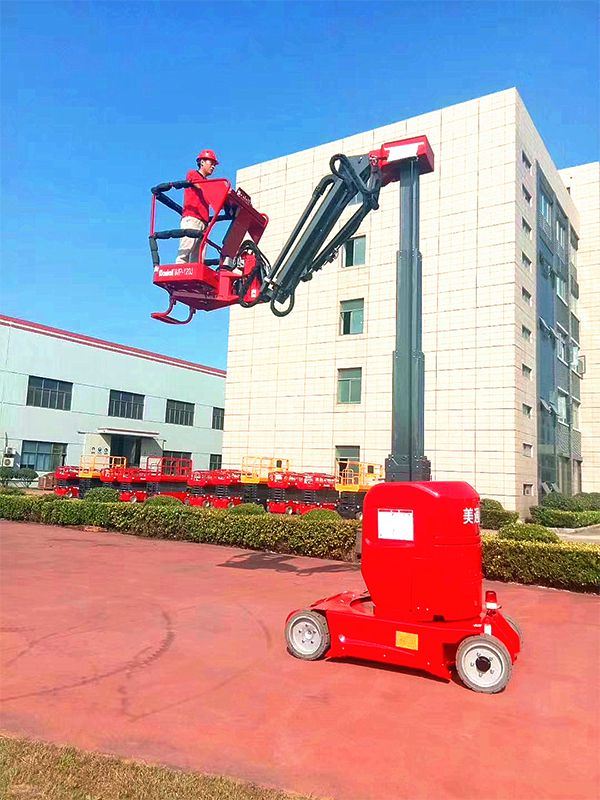

Mantall IMP120J vertical mast lift is an aerial work platform that uses multi-stage mast to accommodate multi-level job site and can pass through doorways, narrow aisles or other tight spaces. It can elevate worker and tools to working heights of up to 12 meters, with a maximum load of 200kg and a maximum working radius of 6 meters. A 345° non-continuous turntable coupled with 135° (-60°/+75°) vertical rotating jib and 90° rotating platform allows for exceptional working range and precise positioning.
The IMP120J vertical mast lift adopts AC drive motor which helps keep maintenance costs to a minimum. It has 30% gradeability and a travel speed of 6 km per hour, providing convenient operation for use wherever there is a need to work at heights. The stable operation system allows operator to perform multiple operations simultaneously, significantly improving working efficiency.
With automatic leveling, tilt protection and overload protection systems, IMP120J vertical mast lift makes the operation more stable and safe.
- 345 degree discontinuous rotation
- Jib swing:-60 degree/+75 degree
- Platform swing: left 45 degree/right 45 degree
- Non-marking rubber tires (size 457*178*308)
- 2.5 degree tilt alarm
- Lifting ears (4 pieces)
- Hour meter
- Proportional control
- Horn
- Fault diagnosis system
- Automatic brake system
- Explosion-proof of the oil tube
- Manual brake release
- Overload sensor
- Platform foot switch
- Emergency lowering down system
- Handheld fault diagnostics
- Air line to the platform
- Platform working light
- AC power to the platform
- Tool bracket
- All motion alarm
- Top limit protection auto-stop device
- Maintenance free battery
- Fiberglass platform

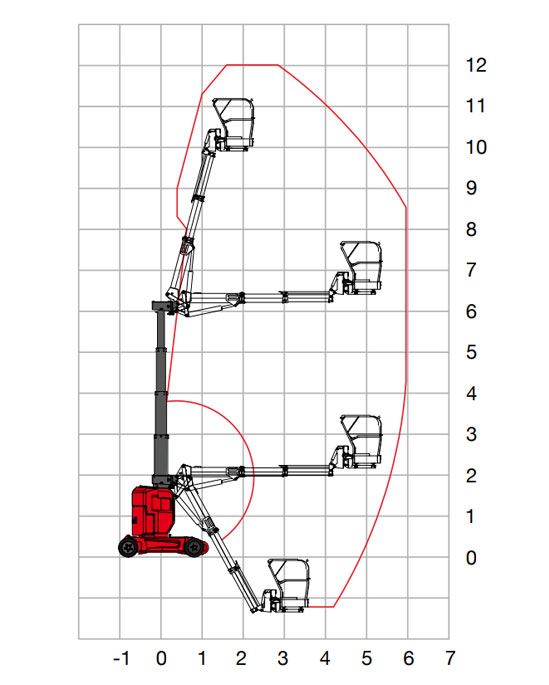

Model | IMP120J |
Max. working height H1 | 12 m |
Max. platform height H2 | 10 m |
Lift capacity | 200 kg |
Max. outreach | 6 m |
Max. up and over height | 5.9 m |
Platform size( L*W*H) | 1.1*0.8*1.1 m |

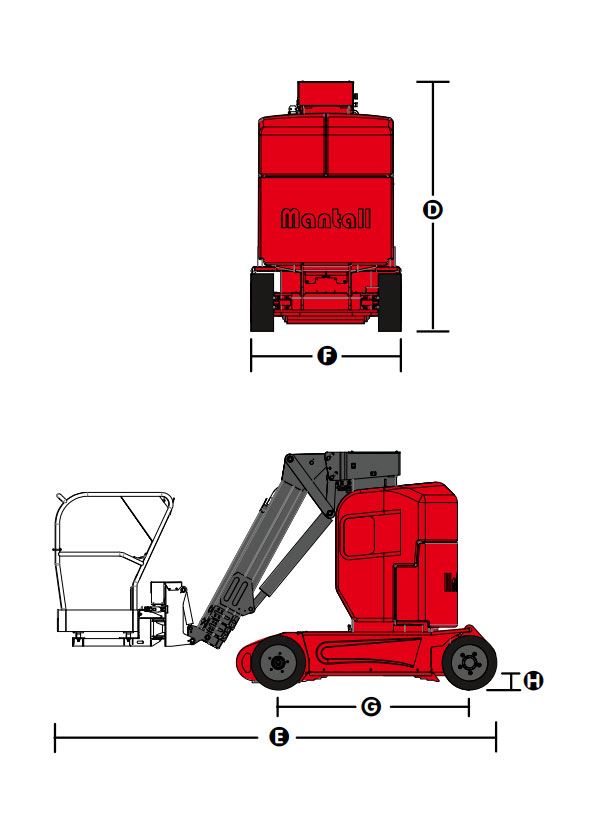

Stowed size E*F*D | 4.03*1.2*1.99 m |
wheelbase G | 1.6 m |
Ground clearance H | 0.12 m |
Ground clearance-deployed pothole | 0.74 m |
Min. turning radius-(inside) | 0.75 m |
Min. turning radius-(outside) | 2.6 m |
Driving speed-stowed | 6 km/h |
Turntable rotation° | 345° |
Jib swing° | -60°+75° |
Platform swing° | left and right 45° |
Gradeability | 25% |
Max. tilt angle ° | 2.5° |
Tire size | 457*178*308 |
Total weight | 4770 kg |
