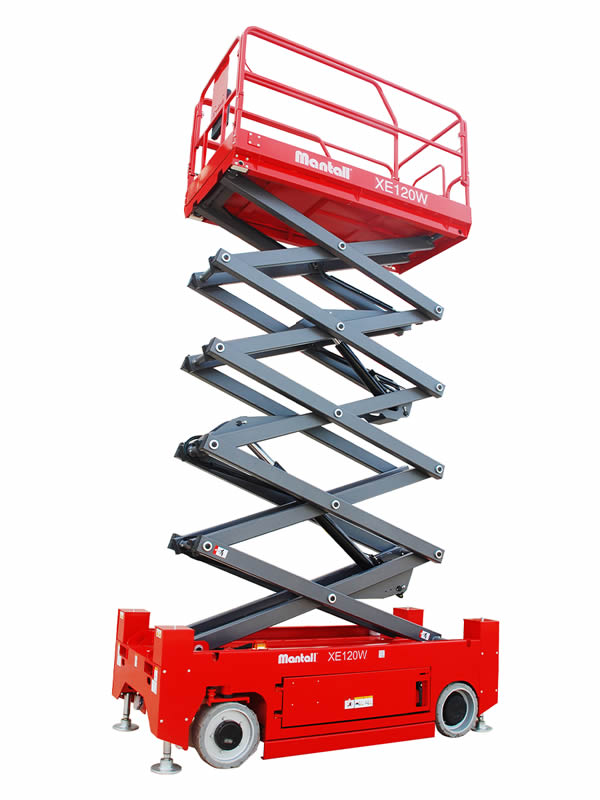

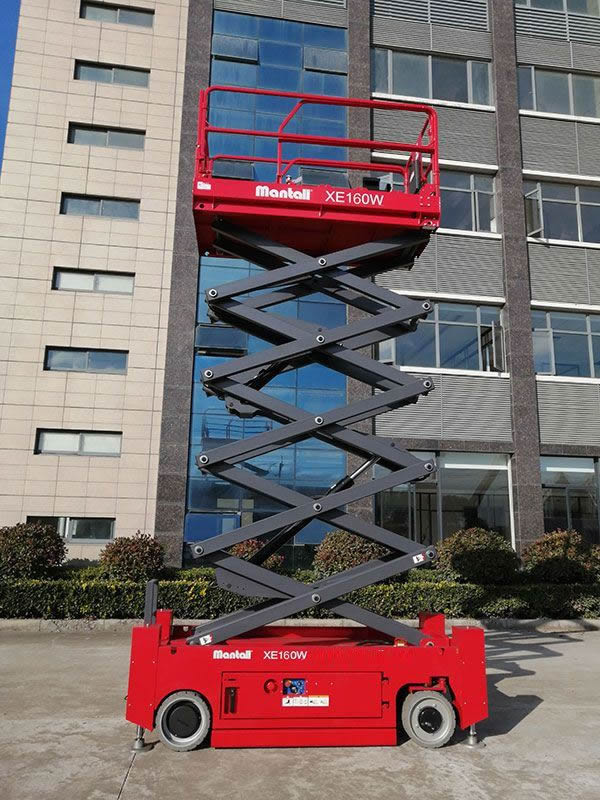

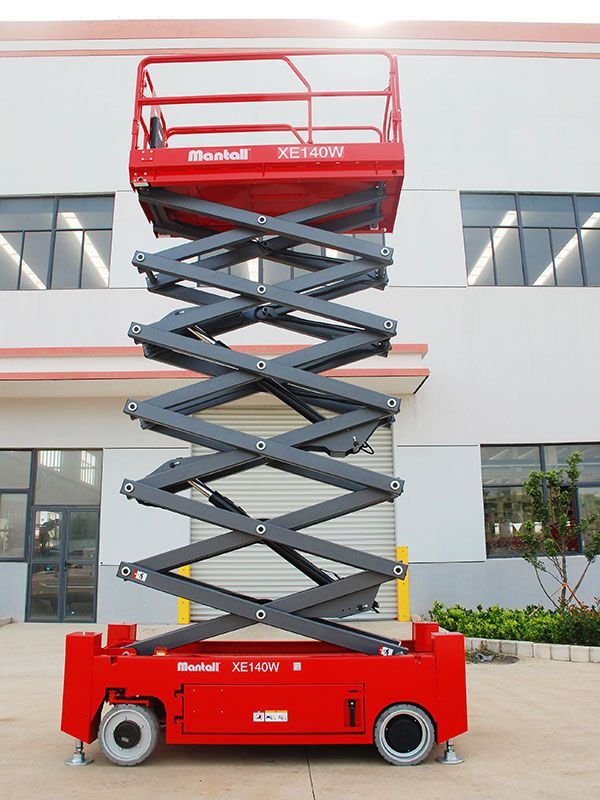

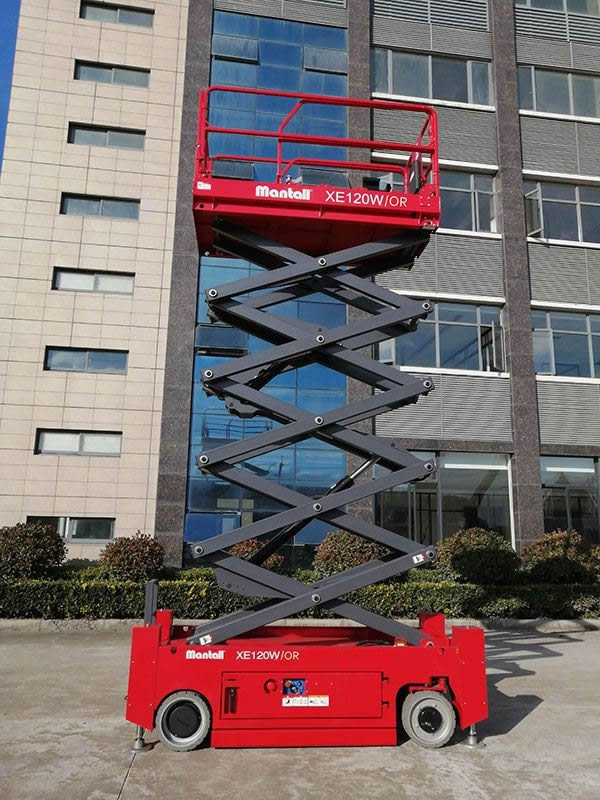

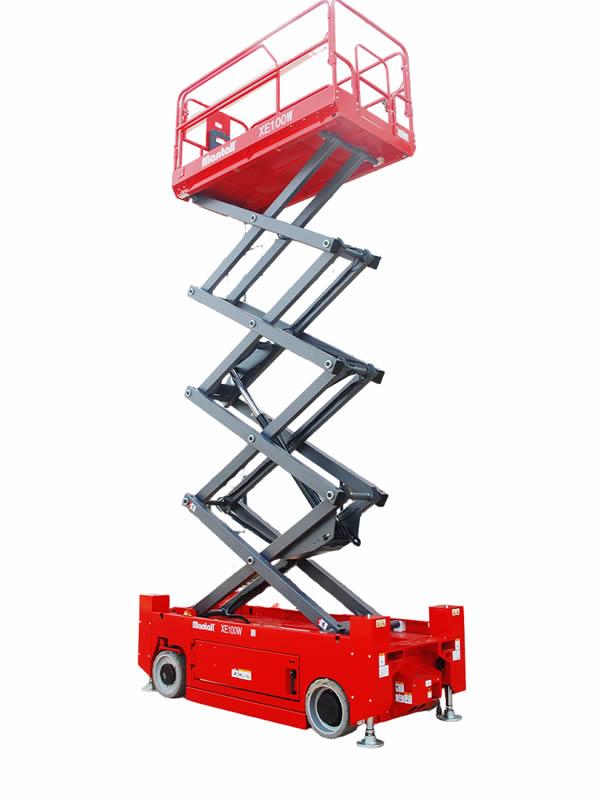

Electric Self-Propelled Scissor Lift, XE-W/OR Series
Electric Self-Propelled Scissor Lift XE-W/OR Series
Video
Mantall XE80W/OR series electric self-propelled scissor lift is designed for working on uneven ground because it has hydraulic self-levelling legs, which allow user to automatically level the scissor lift on slopes up to 4.5 degrees in lengthwise direction and up to 10 degrees in width direction. This electric self-propelled scissor lift delivers a working height of up to 8 meters with the maximum load capacity of 550kg, as well as up to 35% gradeability. In addition, the XE80W/OR series electric self-propelled scissor lift adopts intelligent control system and self-diagnostic system that enables user to perform tasks easily and safely.
Standard Features
- Foldable platform
- Diagnosis system
- 4 wheel drive
- Tilt alarm system
- Fault diagnosis system
- Explosion-proof of the oil tube
- Automatic brake system
- 406*152 non-marking solid rubber tires
- Hour meter
- Proportional control
- Lifting hoists
- Emergency lower down
- Safety maintenance support bar
- Main power switch
- Automatic leveling hydraulic outriggers
- Maintenance-free battery
Optional
- Airline to platform
- Platform work lights
- Special hydraulic oil
- Top limit protection auto-stop device
- Power socket to the platform
- Overload sensor
Specifications
| Models | XE80W/OR |
XE100W/OR |
XE120W/OR |
XE140W/OR |
XE160W/OR |
| Working height max H1 | 8 m | 10 m | 12 m | 14 m | 16 m |
| Platform height max H2 | 6 m | 8 m | 10 m | 12 m | 14 m |
| Platform extension size | 1 m | ||||
| Lifting capacity | 550 kg | 450 kg | 400 kg | 350 kg | 230 kg |
| Lifting capacity on the extension | 120 kg | 100 kg | |||
| Dimension of the platform B*C*A | 2.3×1.15×1.1 m | ||||
| Platform length-extended K | 3.3 m | ||||
| Platform skirting board height L | 0.17 m | ||||
| Overall length and width E*F | 2.55×1.2 m | 2.8*1.2 m | |||
| Height stowed D | 2.25 m | 2.4 m | 2.53 m | 2.65 m | 2.82 m |
| Height-guardrails folded M | 1.64 m | 1.76 m | 1.88 m | 2.05 m | 2.17 m |
| Wheelbase G | 1.68 m | 1.88 m | |||
| Ground clearance H | 0.15 m | 0.14 m | |||
| Turning radius-inside | 0 | ||||
| Turning radius-outside | 2.4 m | 2.64 m | |||
| Raising time/lowering time | 32/30 s | 45/30 s | 55/37 s | 75/50 s | 86/50 s |
| Drive speed-stowed | 3.4 km/h | ||||
| Drive speed-raised | 0.7 km/h | ||||
| Gradeability | 35% | 30% | 25% | ||
| Tilt (front to back/side to side) | 3° / 2° | 1.5° / 1° | |||
| Hydraulic tank capacity | 25 L | 38 L | |||
| Tire size | 406×152 mm | ||||
| Max. platform occupancy | 2 pers | ||||
| Power source | 4×6V/225Ah | ||||
| Outrigger level ability-front to back | 4.5° | 4° | |||
| Outrigger level ability-side to side | 10° | ||||
| Weight | 2270 kg | 2880 kg | 3110 kg | 3295 kg | 3575 kg |

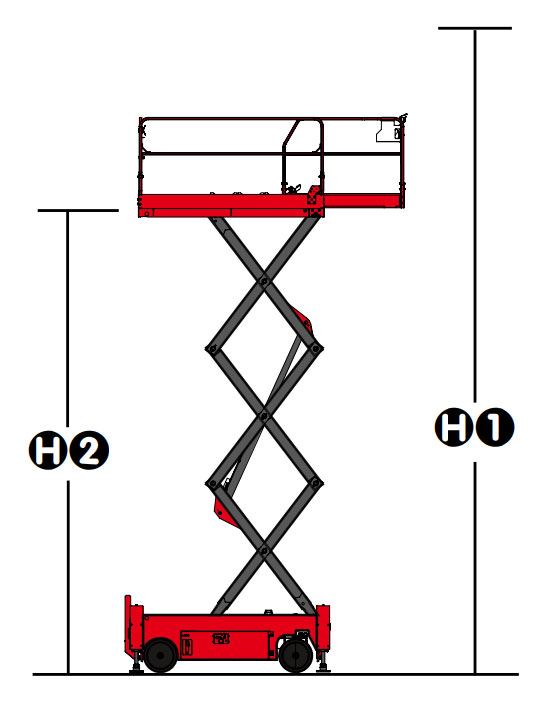

Working Heights

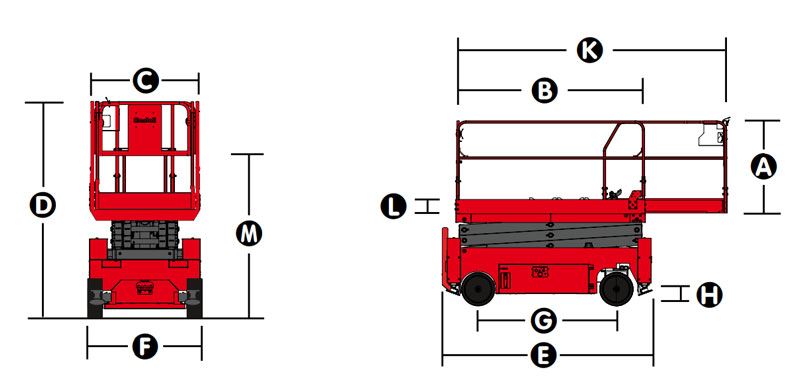

Stowed Dimensions
Function Description
- This scissor lift is mainly used for indoor and outdoor use where vertical lift is required
- The main function is to slide out the extended platform to increase the working area and the ability to rise across
- Strong climbing ability, could climb 35% slope
- The level ability of the legs is strong, about 10° left and right, 4.5° front and rear
- Multi-functional intelligent safety protection system with on board diagnostic system and intelligent fault alarm system
