Mobile Electric Scissor Lift, XE-A Series
Mobile Electric Scissor Lift XE-A Series
Mantall XE-A series mobile electric scissor lifts are an eco-friendly solution to lift people and heavy loads to working heights of up to 14 meters. The quiet and zero-emissions operation makes the electric scissor lift suitable for both indoor and outdoor applications.
Standard Features
- Electric self-propelled, can operate by one person for drive and work in high position
- Hydraulic line rupture protection device
- Screw support leveling device

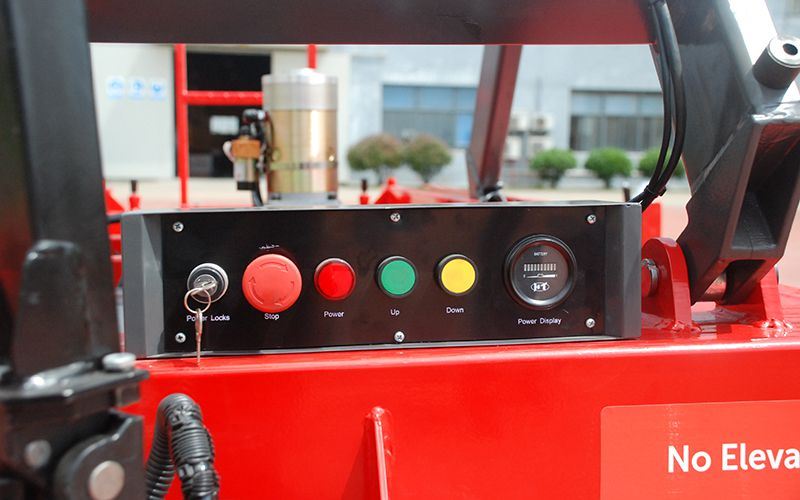

- Emergency stop button
- Emergency lower down
- Rain-proof control box
- Automatically battery charger
Optional
- Extended Platform (below and included XEA130S model)
Specifications
| Model | XE-A50S |
XE-A80S |
XE-A95S |
XE-A110S |
XE-A130S |
XE-A140S |
XE-A160S |
XE-A180S |
XE-A80H |
XE-A110H |
XE-A140H |
| Working height max | 5 m | 8 m | 9.45 m | 11 m | 13 m | 14 m | 16 m | 18 m | 8 m | 11 m | 14 m |
| Platform height max | 3 m | 6 m | 7.45 m | 9 m | 11 m | 12 m | 14 m | 16 m | 6 m | 9 m | 12 m |
| Lift capacity | 450 kg | 300 kg | 1000 kg | ||||||||
| Platform size ( L*W) | 1.3*0.7 m | 1.85*0.88 m | 1.8*1 m | 2.1*1.15 m | 2.45*1.35 m | 2.7*1.5 m | 1.8*1 m | 1.8*1.25 m | 2.45*1.35 m | ||
| Stowed size(L*W*H) | 1.35*0.94*0.8 m | 1.3.1.31 | 2.26*1.3*1.65 m | 2.26*1.3*1.8 m | 2.47*1.31*1.85 m | 3.03*1.51*1.98 m | 3.03*1.51*2.1 m | 3.37*1.75*2.1 m | 1.85*1.24*1.11 m | 1.85*1.49*1.65 m | 2.5*1.59*1.85 m |
| Raising time | 30 s | 54 s | 72 s | 80 s | 88 s | 90 s | 120 s | 130 s | 80 s | 108 s | 128 s |
| Traction speed | 0-16.7 km/h | 0-16.8 km/h | |||||||||
| Lifting motor power | 2.2 kW | 3 kW | 2.2*2 kW | 3 kW | 2.2*2 kW | ||||||
| Driving motor power | 0.75 kW | 1.2 kW | 0.75 kW | 1.2 kW | |||||||
| Power source | DC24V | ||||||||||
| Weight | 540 kg | 740 kg | 950 kg | 1260 kg | 1480 kg | 2000 kg | 2180 kg | 2900 kg | 960 kg | 1850 kg | 2260 kg |
Function Description
- This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
- Load capacity up to 230Kg, the lifting is stable, safe and reliable.
- Strong driving power and fast traction speed
- With on board diagnostic system, intelligent fault alarm system and other functions.

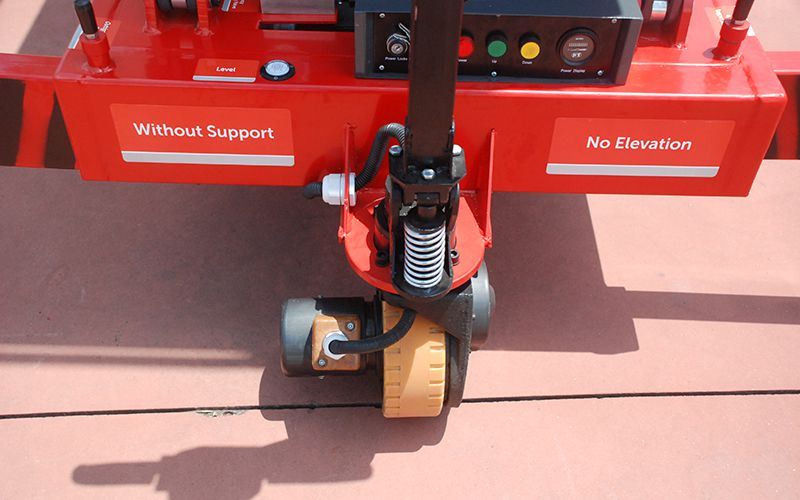

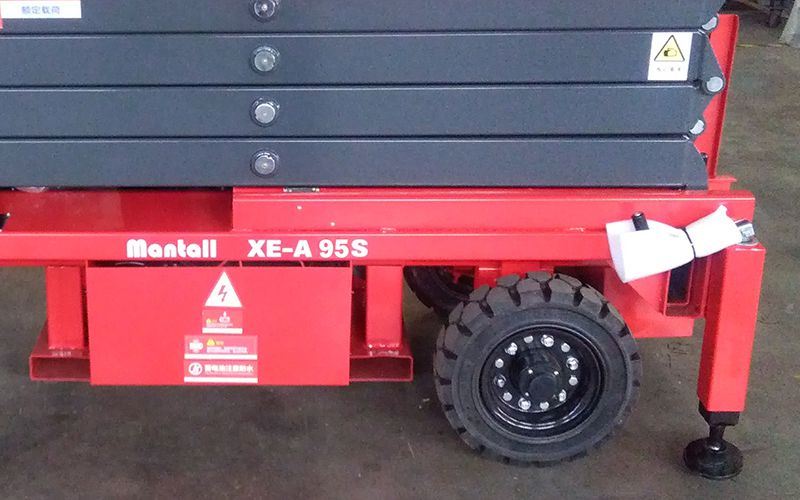

Details
