Self-Propelled Rough Terrain Scissor Lift, XD Series
Self-Propelled Rough Terrain Scissor Lift XD Series
Video

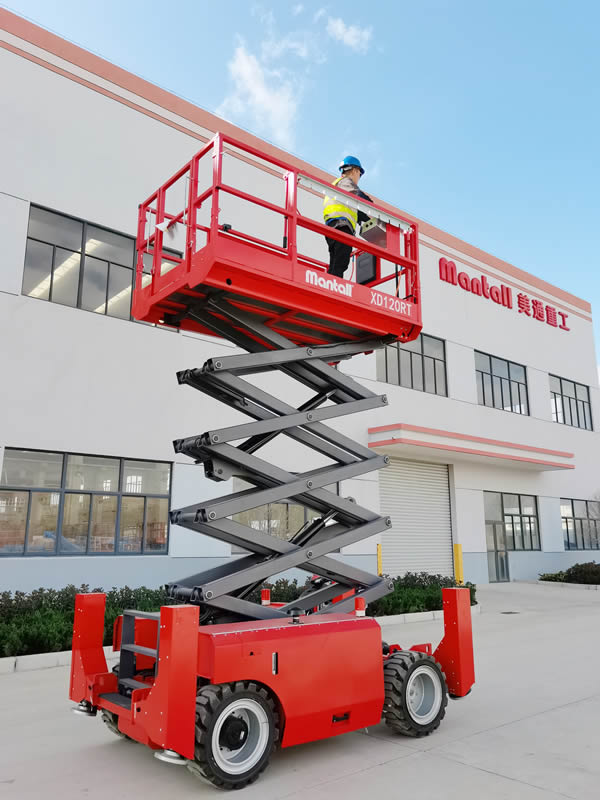

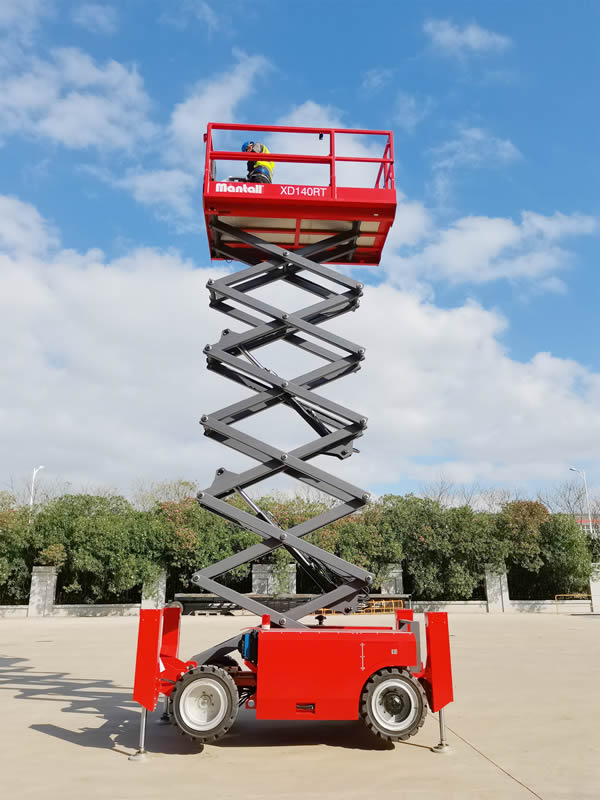

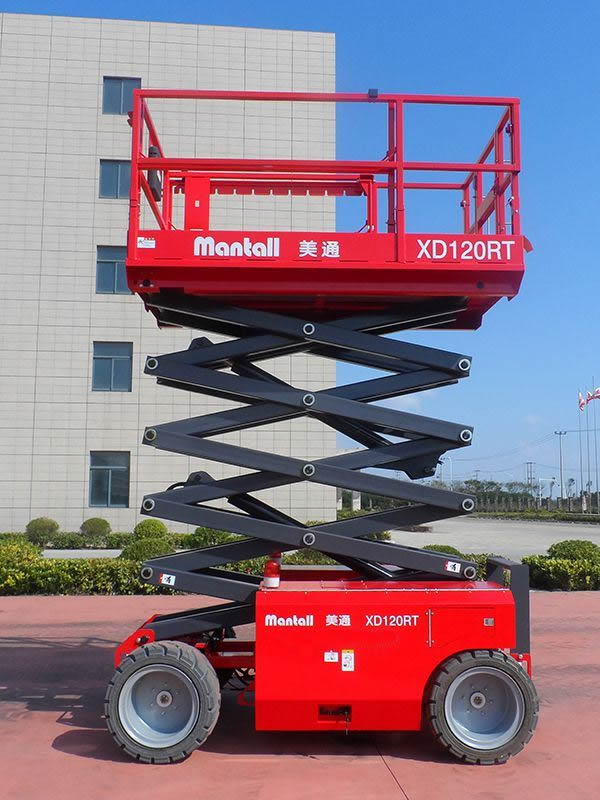

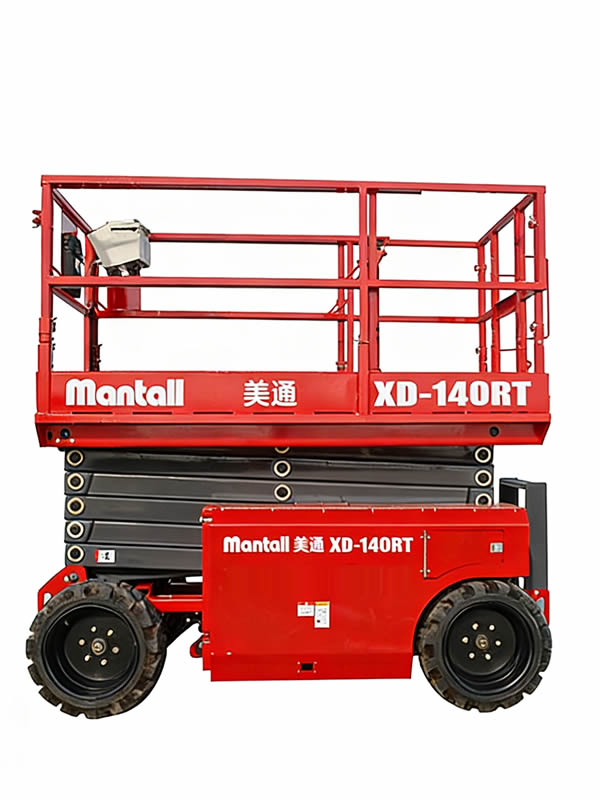

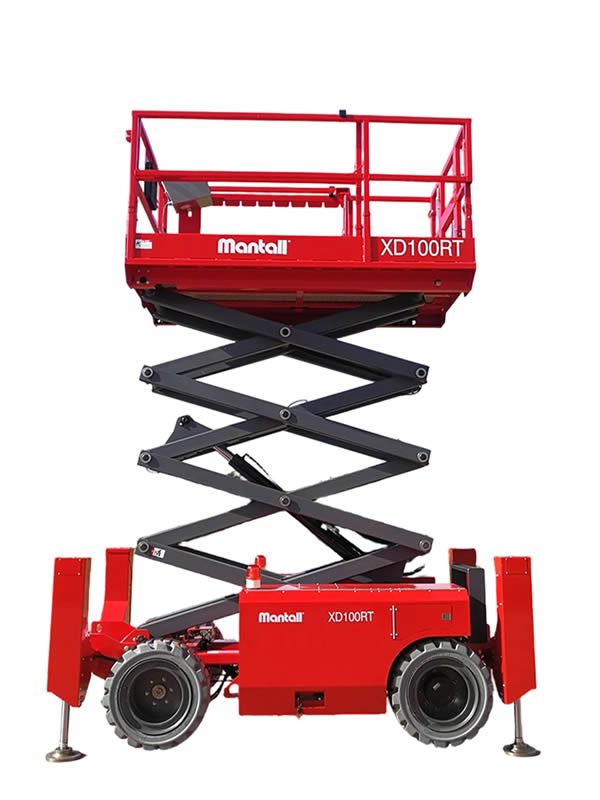

Mantall XD series self-propelled rough terrain scissor lifts are a type of aerial work platform powered by diesel engines. With a 2.5 meter large platform that can be extended to 4 meters in length, this self-propelled rough terrain scissor lift can carry 2 to 3 people, and the maximum load capacity is 567kg. Characterized by the 4-wheel drive and great gradeability, the powerful and excellent off-road performance of these self-propelled rough terrain scissor lifts allows operators do their jobs on difficult ground conditions. The scissor lift also uses high-capacity battery to achieve zero-emission and low noise even when it is used in indoor applications.
Standard Features
- Foldable guardrail
- Diagnostic system
- AC wiring to platform
- 4 wheel drive
- Tilt level sensor with an audible alarm
- Lowering alarm
- Horn
- Hour meter
- Emergency pump
- Proportional controls
- Solid rough tire
- Safety brackets
- Dual flashing beacon
Optional
- Automatic leveling hydraulic outriggers
- Airline to platform
- Motor cold starting components
- Overload sensor
- Moveable alarm components
- Non-mark rough tires
Specifications
| Models | XD100RT |
XD120RT |
XD140RT |
| Working height max H1 | 10 m | 12 m | 14 m |
| Platform height max H2 | 8 m | 10 m | 12 m |
| Platform extension size | 1.5 m | ||
| Lifting capacity | 567 kg | 454 kg | 345 kg |
| Lifting capacity on the extension | 136 kg | ||
| Dimension of the platform B*C*A | 2.5*1.6*1.15 m | ||
| Platform length-extended K | 4 m | ||
| Platform skirting board height L | 0.15 m | ||
| Overall length and width E*F | 2.67*1.76 m | ||
| Height stowed D | 2.4 m | 2.52 m | 2.65 m |
| Height-guardrails folded M | 1.7 m | 1.83 m | 1.98 m |
| Wheelbase G | 1.89 m | ||
| Ground clearance H | 0.17 m | ||
| Turning radius-inside | 1.58 m | ||
| Turning radius-outside | 3.89 m | ||
| Raising time/Lowering time | 40/35 s | 45/37s | 50/42s |
| Drive speed-stowed | 4.0 km/h | ||
| Drive speed-raised | 0.8 km/h | ||
| Gradeability | 40% | ||
| Tilt sensor (front to back/side to side) | 3° / 2° | ||
| Outrigger level ability-front to back | 9° | ||
| Outrigger level ability-side to side | 13° | ||
| Hydraulic tank capacity | 68 L | ||
| Fuel tank capacity | 57 L | ||
| Tire size | 675*280 mm | ||
| Max. platform occupancy (Indoor/Outdoor) | 4/4 pers | 4/2 pers | 3/2 pers |
| Power source | Kubota/Yanmar | ||
| Control | Control Proportional | ||
| Drive | 4-wheels drive | ||
| Weight | 3660 kg | 3930 kg | 4220 kg |
| Weight-with outriggers | 4120 kg | 4390 kg | 4680 kg |

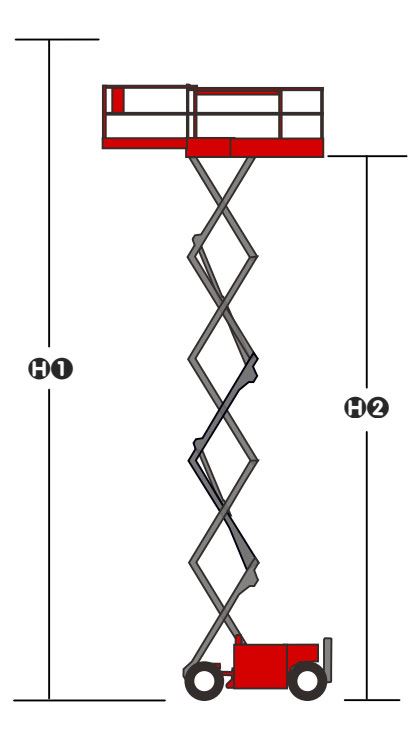

Working Heights

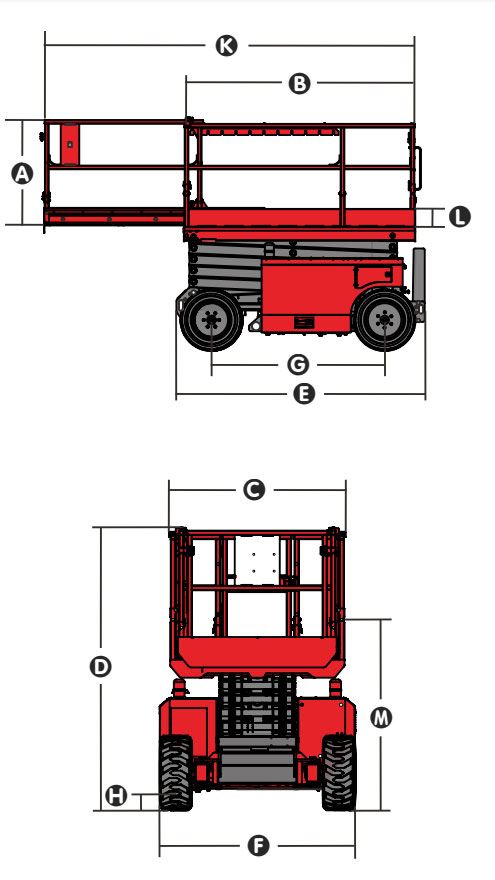

Stowed Dimensions
Function Description
- The metric system height is 2 meters higher than platform height
- CE/AUS market: XD can be used indoors and outdoors, to accommodate 2 persons
- Climbing capability is suitable for driving on the slopes, refer to the operator's manual for details on slope class level
- Weight according to the opitions and standards vary from country to country.
